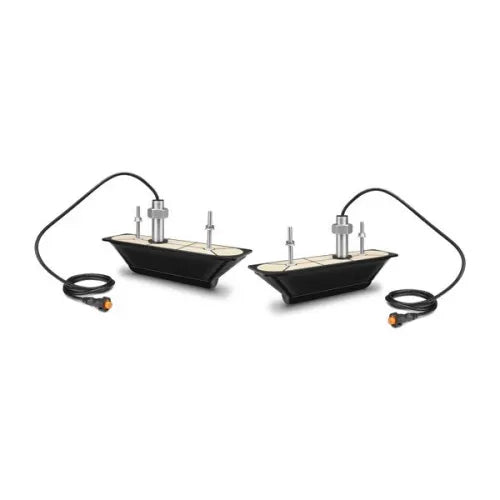

    GARMIN GT34UHD-THP: Ultra High-Definition Thru-Hull Scanning Transducer PAIR

    The Garmin GT34UHD-THP is a premium **thru-hull transducer pair** (Port and Starboard) designed for permanent installation on vessels with deadrise up to **25 degrees**. This kit adds stunningly clear **Ultra High-Definition (UHD) ClearVü™ and SideVü™ scanning sonar** images to your compatible Chartplotter. Utilizing high frequencies (800 kHz to 1,200 kHz) and 500 W of scanning power, the paired system provides unparalleled clarity and stability, even in deep-V hull configurations.


    DUAL-TRANSDUCER STABILITY & UHD CLARITY

    The use of a Port/Starboard pair eliminates hull shadow interference, maximizing the performance of both UHD SideVü and ClearVü scanning sonars.

    KEY SONAR & INSTALLATION FEATURES

    • UHD ClearVü™ & SideVü™: Provides the clearest scanning images available, reaching up to **200 feet (61 m)** below and **250 feet** side-to-side range at maximum clarity.
    • High Frequency Range: Uses frequencies up to 1,200 kHz for extreme detail, essential for identifying fish and structure.
    • Deadrise Compensation: Includes fairing blocks designed to compensate for hull deadrise angles up to **25 degrees**.
    • No Traditional Sonar: This is a dedicated scanning transducer kit (does not include traditional CHIRP functionality).

    CONNECTIVITY AND INTEGRATION

    The GT34UHD-THP is built for seamless network integration into systems utilizing the GCV 20 Black Box or compatible MFDs.

    • **12-Pin Connector:** The included Y-cable allows both transducers to consolidate and connect to a **single 12-pin port** on your Chartplotter (e.g., GPSMAP xsv or ECHOMAP Ultra series [1]).
    • **Cable Length:** Includes a 20-foot cable (plus extensions if needed) and uses durable stainless steel stems.

    Inverell Boating Centre Expert Note:

    The GT34UHD-THP is the premier solution for maximizing UHD scanning clarity on deep-V hulls (up to 25° deadrise). It is a **scanning-only solution** designed to plug directly into 12-pin UHD-compatible Chartplotters or to integrate via the GCV 20 black box. **Professional installation is essential.**

    Specification in detail

    General & Physical


    PART NUMBER: 010-12776-11

    INSTALLATION: Thru-Hull Pair (Stainless Steel Stems)

    CABLE LENGTH: 20 ft (6.1 m) (Main Cable) + Y-Cable

    SUPPORTED DEADRISE: Up to 25° deadrise

    INCLUDES: 2 Transducers (Port/Starboard), Fairing Blocks, Y-Cable

    Sonar Capabilities (Scanning Only)


    NUMBER OF PINS: 12-pin (Single Connection Point)

    SONAR TYPE: Ultra High-Definition ClearVü™ and SideVü™ Scanning

    TRANSMIT POWER: 500 W

    CLEARVÜ FREQUENCY: UHD 800 kHz (760-880 kHz)

    SIDEVÜ FREQUENCY: UHD 1,200 kHz (1,060-1,170 kHz)

    MAXIMUM DEPTH (CLEARVÜ): 200 ft (61 m)

    MAXIMUM RANGE (SIDEVÜ): 250 ft total (125 ft to each side)


    Inverell Boating Centre Technical Summary: The GT34UHD-THP is the UHD scanning solution for maximizing clarity on deep-V hulls (up to 25° deadrise). It utilizes the included Y-cable to connect both transducers to a single 12-pin port, delivering 500W of dedicated scanning power across the 800/1,200 kHz UHD frequencies.
