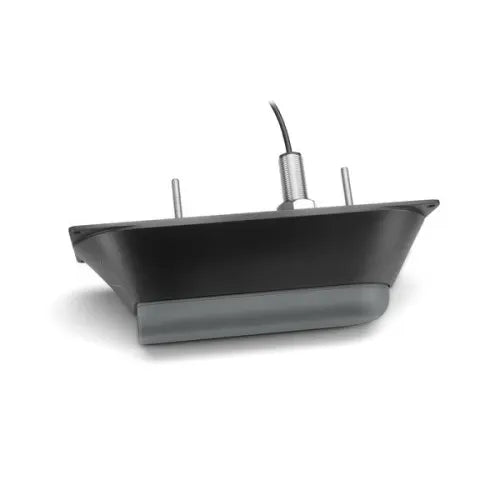

GARMIN GT51M-TH: Mid-Band CHIRP & Scanning Transducer (Thru-Hull)
The Garmin GT51M-TH is the rugged **thru-hull version** of Garmin’s high-power, all-in-one transducer, designed for permanent installation on coastal and offshore vessels. With a durable stainless steel stem, it features powerful **Mid-Band CHIRP Traditional Sonar (600 W)** and high-resolution **CHIRP ClearVü™ and SideVü™ scanning sonar (500 W per element)**. It consistently displays clear fish arches and superior target separation, optimized specifically for **rough sea conditions** and deep traditional sonar down to **1,800 feet**.
STAINLESS STEEL DURABILITY & DEEPWATER CLARITY
The thru-hull mounting provides enhanced performance and stability at speed compared to transom mounts. This transducer is engineered for precise fishfinding in challenging environments.
KEY SONAR & COVERAGE FEATURES
- Deep Traditional Sonar: 600 W power for depths up to **1,800 feet**, utilizing Mid-Band CHIRP (80-160 kHz).
- CHIRP Scanning: ClearVü™ up to **1,000 feet** and SideVü™ up to **750 feet**, operating at 260/455 kHz.
- Thru-Hull Kit: Includes stainless steel stem, fairing block, and installation hardware. Designed for hulls with **less than 5 degrees of deadrise**.
- Temperature Sensor: Features a built-in fast-response temperature sensor for accurate water temperature readings.
INSTALLATION AND CONNECTIVITY
The GT51M-TH is a high-performance transducer built for lasting, below-waterline installation.
- **12-Pin Connector:** Uses the standard 12-pin connector for simultaneous output of all three sonar technologies.
- **Cable Length:** Includes a 5-foot cable plus a **30-foot extension cable** for easy routing through the vessel.
- **Installation Note:** The fairing block is designed to correct transducer beam angles for optimal performance on hulls up to 5° deadrise.
Inverell Boating Centre Expert Note:
The GT51M-TH is the preferred choice for permanent installation on fiberglass or wood hulls, offering increased durability and less turbulence than transom-mounted units. Due to the requirement for hull penetration and precise alignment, **professional marine installation is highly recommended**. It requires a compatible Chartplotter with a 12-pin port and built-in CHIRP/scanning capability.
Specification in detail
Specification in detail
General & Physical
PART NUMBER: 010-01966-10
INSTALLATION: Thru-Hull (Stainless Steel Stem)
CABLE LENGTH: 5 ft + 30 ft extension cable
SUPPORTED DEADRISE: Up to 5° deadrise
INCLUDES: Fairing block, isolation plate, bushings, mounting hardware
Sonar Capabilities
NUMBER OF PINS: 12-pin
TRADITIONAL SONAR: CHIRP Mid-band (80-160 kHz)
TRADITIONAL POWER: 600 W
MAXIMUM DEPTH (TRADITIONAL): 1,800 ft (548 m)
SCANNING SONAR: CHIRP ClearVü™ and SideVü™
SCANNING POWER: 500 W per element
MAXIMUM DEPTH (CLEARVÜ): 1,000 ft (304 m)
MAXIMUM DEPTH (SIDEVÜ): 750 ft (228 m)
Inverell Boating Centre Technical Summary: The GT51M-TH provides comprehensive sonar coverage with high power (600W/500W). Its thru-hull mounting is designed for rough offshore conditions, and the Mid-band CHIRP frequency is optimized for deep water, offering reliable returns down to 1,800 feet.
