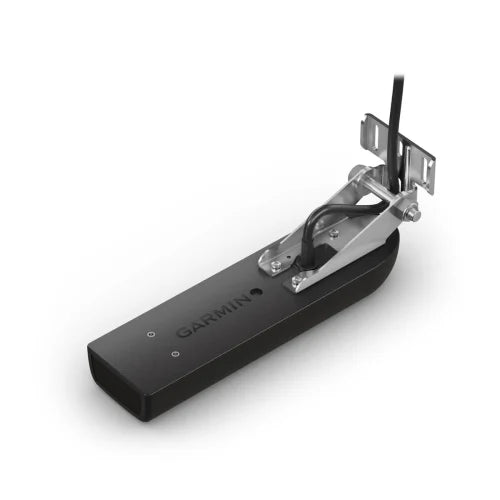

GARMIN GT51M-TM: Mid-Band CHIRP & Scanning Transducer (600W/500W)
The Garmin GT51M-TM is the perfect all-in-one transducer for **coastal and offshore fishermen**. This transom-mounted unit combines powerful **Mid-Band CHIRP Traditional Sonar (600 W)** with high-resolution **CHIRP ClearVü™ and SideVü™ scanning sonar (500 W per element)**. It is specifically optimized for rough sea conditions, delivering clear, crisp fish arches, superior target separation, and clear pictures of structure down to 1,800 feet.
DEEPWATER PERFORMANCE & SCANNING CLARITY
The GT51M-TM utilizes mid-band CHIRP frequencies (80–160 kHz) to achieve better depth penetration and superior performance in coastal and offshore environments.
KEY SONAR & COVERAGE FEATURES
- Traditional Mid-Band CHIRP: 600 W power for depths up to **1,800 feet**, optimized for deep coastal fishing.
- CHIRP ClearVü™ Depth: Scanning depth up to **1,000 feet**, delivering clear images of structure directly below the boat.
- CHIRP SideVü™ Range: Scanning range up to **750 feet** (to the sides) for quickly scoping out large fishing areas.
- Advanced Frequencies: Utilizes Mid-Band CHIRP (80-160 kHz) and ClearVü/SideVü CHIRP frequencies (260 kHz and 455 kHz) for broad coverage and sharp target detail.
INSTALLATION AND CONNECTIVITY
The GT51M-TM is a reliable 12-pin transducer designed for robust transom mounting.
- **12-Pin Connection:** Uses the standard 12-pin connector for simultaneous Traditional, ClearVü, and SideVü data output.
- **Cable Length:** Includes a long **30-foot cable** for flexibility in installation on medium to large vessels.
- **Temperature Sensor:** Features a built-in fast-response temperature sensor.
Inverell Boating Centre Expert Note:
The GT51M-TM is specifically designed to perform in the challenging coastal and offshore environment where deeper penetration (1,800 ft Traditional) and rough water stability are essential. It requires a compatible Chartplotter with a 12-pin port and built-in CHIRP/scanning capability (e.g., GPSMAP xsv combos or ECHOMAP Ultra/UHD2 sv models [1]).
Specification in detail
Specification in detail
General & Physical
PART NUMBER: 010-01966-00
CABLE LENGTH: 30 ft (9.14 m)
INSTALLATION: Transom Mount Kit Included
SUPPORTED TRANSOM ANGLES: 0°–70° degree transom
Sonar Capabilities
NUMBER OF PINS: 12-pin
TRADITIONAL SONAR: CHIRP Mid-band (80-160 kHz)
TRADITIONAL POWER: 600 W
MAXIMUM DEPTH (TRADITIONAL): 1,800 ft (548 m)
SCANNING SONAR: CHIRP ClearVü™ and SideVü™
SCANNING POWER: 500 W per element
SCANNING FREQUENCIES: ClearVü/SideVü CHIRP 260 kHz (245-275 kHz) & 455 kHz (445-465 kHz)
MAXIMUM DEPTH (CLEARVÜ): 1,000 ft (304 m)
MAXIMUM DEPTH (SIDEVÜ): 750 ft (228 m)
Inverell Boating CentreTechnical Summary: The GT51M-TM is defined by its robust 600W/500W power and Mid-band CHIRP frequency, delivering deep traditional sonar (1,800 ft) combined with high-resolution scanning. It uses a single 12-pin connector for all outputs, simplifying connectivity to compatible Garmin Chartplotters.
