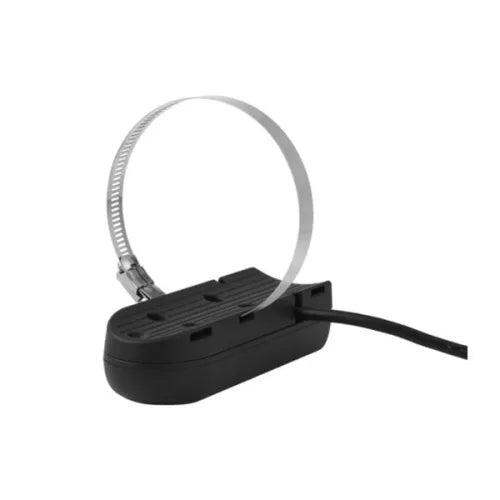

Garmin GT54UHD-TM Ultra High-Definition Scanning Sonar All-in-one Transducer

Garmin GT54UHD-TM Ultra High-Definition Scanning Sonar All-in-one Transducer

 Excellent 4.8 | 1,452 reviews
Regular price $459.00
Regular price $459.00 Sale price $599.00
Sold out
Ready to ship in 1–3 business days.
  • Apple Pay
  • Afterpay
  • American Express
  • Mastercard
  • Visa
  • PayPal
Garmin GT54UHD-TM Ultra High-Definition Scanning Sonar All-in-one Transducer

Garmin GT54UHD-TM Ultra High-Definition Scanning Sonar All-in-one Transducer

Regular price $459.00
Regular price $459.00 Sale price $599.00
SAVE 23% Sold out
  • files/Untitled-1-min.jpg

    “I upgraded to the Garmin GT56UHD and the clarity is unbelievable. You can literally see fish moving around structure. Hard Rig Marine helped me pick the right setup and it’s been spot on since day one.”

    Michael R. — Cairns, QLD
  • files/Untitled-2-min.jpg

    “I’m not a tech person, but the team made it super easy to install my GT54UHD transducer. Works perfectly with my ECHOMAP — I’ve never had sonar this clear in the estuary before!”

    Jenny L. — Mandurah, WA
  • files/Untitled-3-min.jpg

    “The Airmar B175M changed my whole deep drop setup. Way better definition and stability compared to my old transducer. You get what you pay for — and these guys know their stuff.”

    Ben T. — Newcastle, NSW

    GARMIN GT54UHD-TM: All-in-One Ultra High-Definition Transducer

    The Garmin GT54UHD-TM is an all-in-one transducer that delivers the highest resolution **Ultra High-Definition (UHD) ClearVü™ and SideVü™ scanning sonar** images available. It pairs this clarity with amazingly clear **High-Wide CHIRP Traditional Sonar**. This compact, easily installed transducer provides image details so clear and precise that you can see individual fish hanging near submerged structure, making it ideal for maximizing efficiency on the water.


    ULTRA-HIGH CLARITY & PERFORMANCE

    The GT54UHD features multiple frequency settings that offer incredible detail for structure identification and target separation at various ranges.

    KEY SONAR & COVERAGE FEATURES

    • Ultra High-Definition Sonar: The 800 kHz ClearVü provides incredibly detailed images up to **200 feet (61m)** below your boat. The 1,200 kHz UHD SideVü offers exceptional clarity for targets out to **125 feet** to each side.
    • Extended Range SideVü: Utilizes a secondary 455 kHz SideVü setting to provide options for extended range up to **500 feet** total coverage (SideVü max depth: 500 ft).
    • High-Wide CHIRP: The traditional sonar delivers remarkably clear target separation and definition, reaching depths up to **800 feet**.

    INSTALLATION AND POWER

    The GT54UHD is compact, easy-to-install, and compatible with a wide range of mounting configurations.

    • **Transducer Power:** Provides 350W Traditional CHIRP power and 350W Scanning Sonar power.

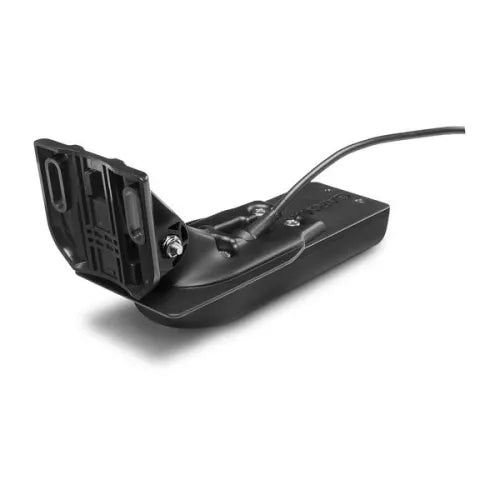

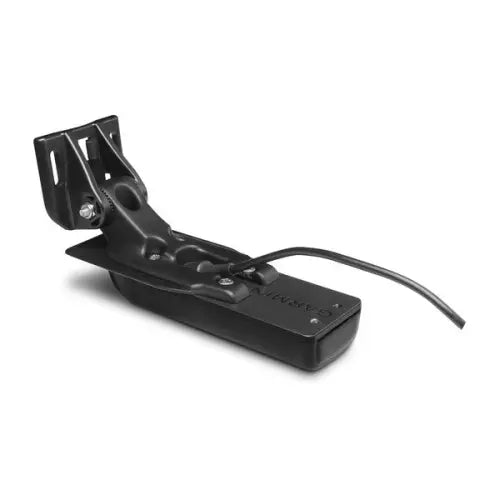

    • **Mounting Options:** Includes hardware for Transom and Trolling Motor mounting.
    • **Connectivity:** Uses the standard 12-pin connector for power, depth, temperature, and sonar data output to compatible Chartplotters.

    Inverell Boating Centre Expert Note:

    The GT54UHD-TM is the best all-in-one transducer for maximizing clarity, especially in the 800 kHz and 1,200 kHz UHD scanning frequencies. It's the ideal pairing for ECHOMAP UHD2/Ultra 2 or GPSMAP xsv units that support the 12-pin transducer port. It provides full SideVü and ClearVü functionality up to 500 feet total range.

    Specification in detail

    General & Physical


    PART NUMBER: 010-12909-00

    CABLE LENGTH: 20 ft (6.1 m)

    INSTALLATION: Transom, Trolling Motor, or Thru-Hull (Hardware Included)

    SUPPORTED TRANSOM ANGLES: 0°–70° degree transom

    Sonar Capabilities


    NUMBER OF PINS: 12

    TRADITIONAL SONAR: CHIRP High Wide (150-240 kHz)

    SCANNING SONAR: UHD ClearVü and SideVü

    TRADITIONAL POWER: 350 W

    SCANNING POWER: 350 W

    MAXIMUM DEPTH (TRADITIONAL): 800 ft

    MAXIMUM DEPTH (CLEARVÜ): 200 ft

    MAXIMUM RANGE (SIDEVÜ): 500 ft (UHD SideVü max depth 125 ft)


    Inverell Boating Centre Technical Summary: The GT54UHD-TM is a comprehensive 12-pin transducer that combines three sonar types. It offers superior power distribution (350W Traditional / 350W Scanning) and utilizes the Ultra High-Definition 800 kHz ClearVü and 1,200 kHz SideVü frequencies for unmatched image clarity in shallow to mid-depth water.
