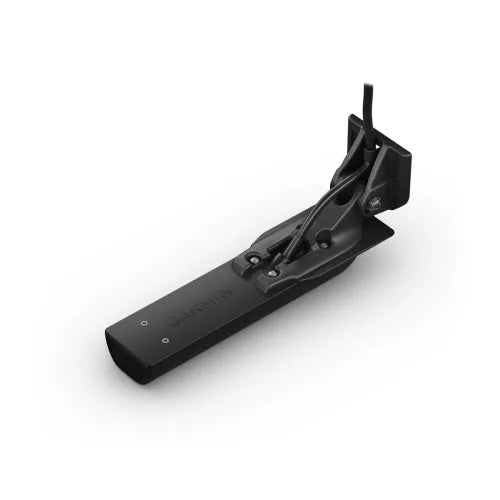

Garmin GT56UHD

Garmin GT56UHD

 Excellent 4.8 | 1,452 reviews
Regular price $599.00
Regular price $599.00 Sale price $749.00
Sold out
Ready to ship in 1–3 business days.
  • Apple Pay
  • Afterpay
  • American Express
  • Mastercard
  • Visa
  • PayPal
Garmin GT56UHD

Garmin GT56UHD

Regular price $599.00
Regular price $599.00 Sale price $749.00
SAVE 20% Sold out
  • files/Untitled-1-min.jpg

    “I upgraded to the Garmin GT56UHD and the clarity is unbelievable. You can literally see fish moving around structure. Hard Rig Marine helped me pick the right setup and it’s been spot on since day one.”

    Michael R. — Cairns, QLD
  • files/Untitled-2-min.jpg

    “I’m not a tech person, but the team made it super easy to install my GT54UHD transducer. Works perfectly with my ECHOMAP — I’ve never had sonar this clear in the estuary before!”

    Jenny L. — Mandurah, WA
  • files/Untitled-3-min.jpg

    “The Airmar B175M changed my whole deep drop setup. Way better definition and stability compared to my old transducer. You get what you pay for — and these guys know their stuff.”

    Ben T. — Newcastle, NSW

    GARMIN GT56UHD-TM: All-in-One Ultra High-Definition Transducer

    The Garmin GT56UHD-TM offers ultimate versatility and clarity in a single all-in-one transducer. This unit features **Ultra High-Definition (UHD) ClearVü™ and SideVü™ scanning sonars** alongside powerful **High-Wide CHIRP Traditional Sonar**. With 350W Traditional and 500W Scanning power, it delivers remarkably clear target separation and definition up to **244 meters (800 feet)** below the boat (in freshwater Traditional mode).


    UHD CLARITY & MULTIPLE FREQUENCIES

    The GT56UHD provides photo-like images of structure and fish, putting more power on targets via its downward-facing and side-facing elements.

    KEY SONAR & PERFORMANCE FEATURES

    • Ultra High-Definition ClearVü/SideVü: Uses multiple scanning frequencies (455 kHz, 800 kHz, and 1,000 kHz) for top performance at various depths, with 20% greater range at 1,000 kHz than previous models.
    • High-Wide CHIRP Traditional Sonar: Operates in the 150-240 kHz range, delivering superb target separation up to 800 feet (244 m) in freshwater.
    • Vivid Color Palettes: High-contrast color palettes make it easier to distinguish targets and structure instantly.
    • Mounting Versatility: Includes mounting hardware for Transom, Trolling Motor, and Thru-Hull installation options.

    INSTALLATION AND CONNECTIVITY

    The GT56UHD-TM is built for easy installation and reliable performance across compatible ECHOMAP™ and GPSMAP® units.

    • **12-Pin Connection:** Uses the standard 12-pin connector for power and data output to compatible Chartplotters.
    • **Transom Angle Support:** Supports transom angles between 0°–70° degrees for optimal sonar operation.

    Inverell Boating Centre Expert Note:

    The GT56UHD is the premier all-in-one transducer for UHD ClearVü/SideVü scanning, offering 500W of scanning power and 350W Traditional power. When pairing with an MFD, ensure your unit has a 12-pin port and built-in UHD scanning capability (typically found on 'sv' or 'xsv' models like the ECHOMAP UHD2/Ultra 2 or GPSMAP 8400xsv series [1]).

    Specification in detail

    General & Physical


    PART NUMBER: 010-13073-00

    DIMENSIONS (WITHOUT MOUNT): 218.5 mm x 51.8 mm x 27.7 mm

    CABLE LENGTH: 7.62 m (25 ft)

    INSTALLATION: Transom, Trolling Motor, or Thru-Hull (Hardware Included)

    SUPPORTED TRANSOM ANGLES: 0°–70° degree transom

    Sonar Capabilities


    NUMBER OF PINS: 12

    TRADITIONAL SONAR: High-wide CHIRP (150-240 kHz)

    TRADITIONAL POWER: 350 W

    SCANNING SONAR: Ultra High-Definition ClearVü™ and SideVü™

    SCANNING POWER: 500 W

    FREQUENCIES: 455 kHz, 800 kHz, 1000 kHz (and Traditional 150-240 kHz)

    MAXIMUM DEPTH (FRESHWATER): Traditional: 244 m (800 ft); ClearVü: 122 m (400 ft); SideVü: 152 m (500 ft)


    Inverell Boating Centre Technical Summary: The GT56UHD-TM is a comprehensive 12-pin transducer that combines three sonar types. It offers superior power distribution (350W Traditional / 500W Scanning) and utilizes the highly detailed 1,000 kHz scanning frequency for the clearest imaging in shallow and mid-depth waters.

    Warranty / Availability of Repair Facilities & Parts

    AU Warranty / Availability of Repair Facilities & Parts

    Garmin Warranty / Availability of Repair Facilities & Parts


    On this page, Garmin customers in Australia will find detailed warranty information; information regarding availability of repair facilities and parts including for out-of-warranty service; other important details regarding repair or replacement of a Garmin product; and how to contact Inverell Boating Centre for further information.

    On this page


    Limited Warranty

    This warranty is provided by Garmin Australasia Pty Ltd.

    Application of Australian Consumer Guarantees


    Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

    The benefits under this Limited Warranty are in addition to other rights and remedies under applicable law. Phone: 0417 159 205.

    One-Year Consumer Products Limited Warranty


    Non-aviation products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Garmin Australasia will, at its sole option, repair or replace any components that fail in normal use at no charge for parts or labour (customer responsible for transportation).

    Warranty Exclusions

    • Cosmetic damage such as scratches, nicks, and dents.
    • Consumable parts (batteries, etc.) unless damage occurs due to defects in materials or workmanship.
    • Damage from accident, abuse, misuse, water, fire, or external causes.
    • Service by non-authorised providers.
    • Modifications or altered units without written permission.
    • Damage caused by non-Garmin cables or accessories.


    Garmin reserves the right to refuse warranty claims for products obtained or used in contravention of local laws. Map accuracy and completeness are not guaranteed.

    Warranty Process

    1. Contact Inverell Boating Centre Support to request an RMA number.

      Email: inverellboatingcentre.cwa@gmail.com

      Phone: 0417 159 205

      Provide your unit serial number, return address, and contact number.
    2. Ship the unit with RMA number to Garmin or Inverell Boating Centre.


      INVERELL BOATING CENTRE

      Attn: Warranty / Returns:
      10a Swanbrook Rd,
      Inverell NSW 2360,
      Australia

      Availability of Repair Facilities & Parts (Out of Warranty)

      Garmin products include complex integrated components. Repairs of parts such as cracked screens or integrated bands may not be possible outside Garmin factory conditions. Therefore, facilities or spare parts may not always be available for repair of such components.

      Where an out-of-warranty service is required, Garmin Australasia or INVERELL BOATING CENTRE may offer to sell a replacement unit or Garmin Refurbished product. This applies only to out-of-warranty service and not to consumer guarantees under the Australian Consumer Law.

      Repair or Replacement of a Garmin Product

    Australian Consumer Law Notice:

    • Repair or replacement of goods capable of retaining user data may result in loss of that data.
    • Goods presented for repair may be replaced with refurbished goods of the same type rather than repaired. Refurbished parts may be used to repair goods.


    Additional Resources


    Contact for Further Information

    For all warranty or out-of-warranty enquiries, please contact:

    INVERELL BOATING CENTRE
    www.inverellboatingcentre.com
    10a Swanbrook Rd, Inverell NSW 2360, Australia

    Phone: 0417 159 205

    Email: inverellboatingcentre.cwa@gmail.com
