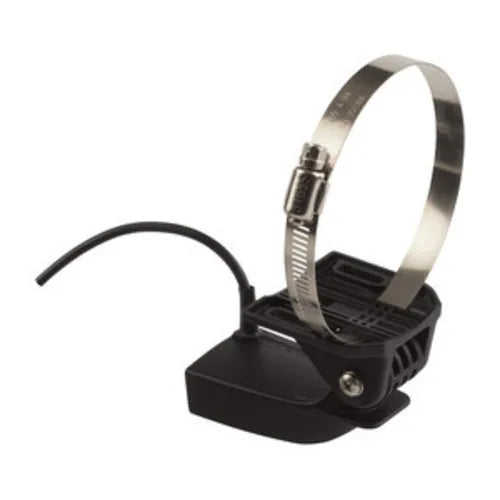

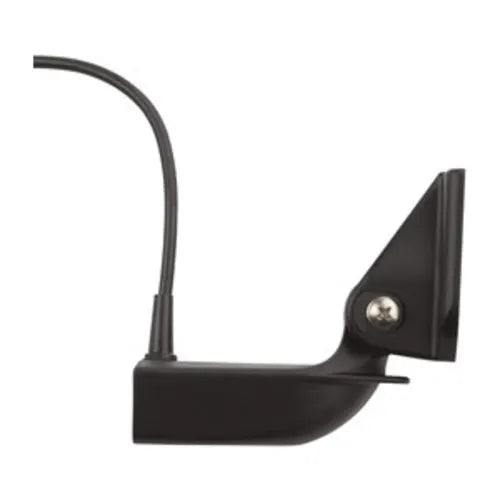

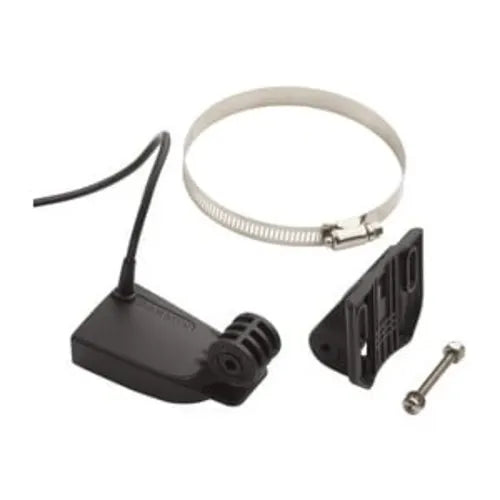

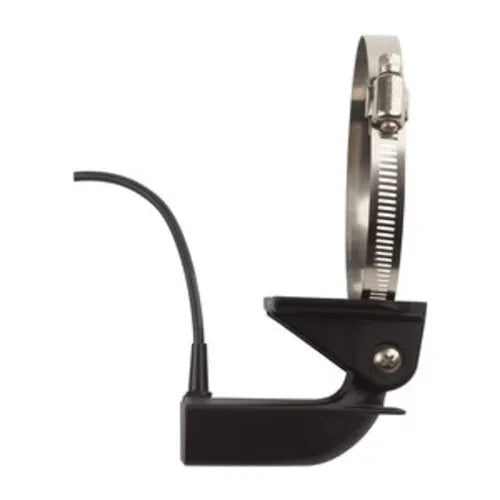

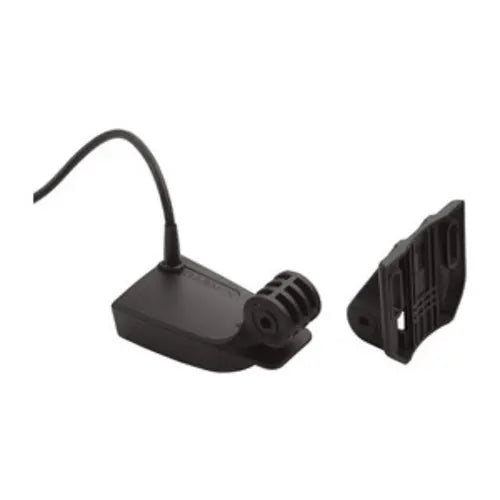

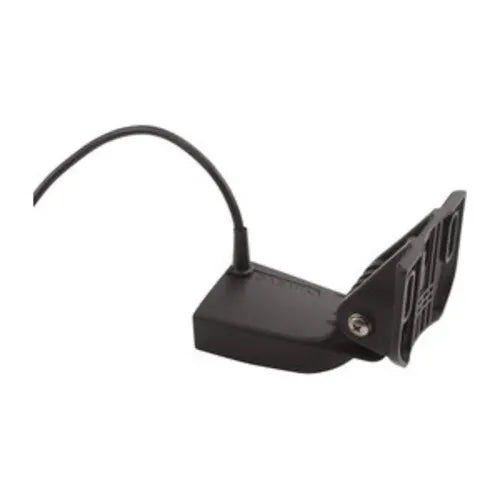

    GARMIN GT8HW-TM: High-Wide CHIRP Traditional Sonar Transducer (250W)

    The Garmin GT8HW-TM is a high-performance **Traditional Sonar transducer** perfect for shallow water fishermen who require clear bottom definition and crisp, wide fish arches. This 8-pin unit features **High-Wide CHIRP Traditional Sonar (145–230 kHz)** and has a power rating of **250 W**, providing depths up to **800 feet (freshwater)**. The wider beam width (up to 24 degrees) delivers a significantly larger coverage area beneath the boat.


    HIGH-WIDE CHIRP CLARITY & COVERAGE

    The GT8HW-TM is specialized for freshwater and inshore fishing applications, where maximizing coverage area and target separation is crucial.

    KEY SONAR & PERFORMANCE FEATURES

    • High-Wide CHIRP: Operates across the 145–230 kHz band, ensuring excellent target separation and definition.
    • Wide Coverage: Features a beam angle up to **24 degrees**, providing a large coverage area to maximize the chance of locating fish.
    • Deep Capability: Achieves depth capability up to **800 feet** in freshwater.
    • Versatile Mounting: Can be mounted on the transom or a trolling motor, with an **in-hull mount** option also available.

    INSTALLATION AND CONNECTIVITY

    The GT8HW-TM is a reliable, plug-and-play transducer using the 8-pin connector.

    • **8-Pin Connector:** Uses the 8-pin connector for power and data output.
    • **Cable Length:** Includes a robust **20-foot cable** for flexible routing.

    Inverell Boating Centre Expert Note:

    The GT8HW-TM is a dedicated Traditional Sonar unit (no scanning capability) optimized for the high-wide frequency range (145–230 kHz). This is the best choice when maximum bottom coverage in relatively shallow water is the priority. Ensure your Chartplotter has a compatible 8-pin port and does not require ClearVü or SideVü from this transducer.

    Specification in detail

    General & Physical


    PART NUMBER: 010-12401-00

    NUMBER OF PINS: 8-pin

    CABLE LENGTH: 20 ft (6.1 m)

    INSTALLATION: Transom or Trolling Motor Mount (In-Hull option also supported)

    SUPPORTED TRANSOM ANGLES: 0°–70° degree transom

    Sonar Capabilities (Traditional Only)


    SONAR TYPE: Traditional CHIRP

    TRADITIONAL POWER: 250 W

    MAXIMUM DEPTH (FRESHWATER): 800 ft (244 m)

    FREQUENCY: CHIRP High Wide (145-230 kHz)

    BEAMWIDTH: 24°–16°

    DEPTH/SPEED/TEMPERATURE: Depth and Temperature


    Inverell Boating Centre Technical Summary: The GT8HW-TM is a specialized 8-pin transducer providing 250W power for Traditional Sonar only. It excels in shallow-to-mid depth freshwater applications, featuring High-Wide CHIRP for maximum coverage (up to 24° beamwidth) and clear target separation.
