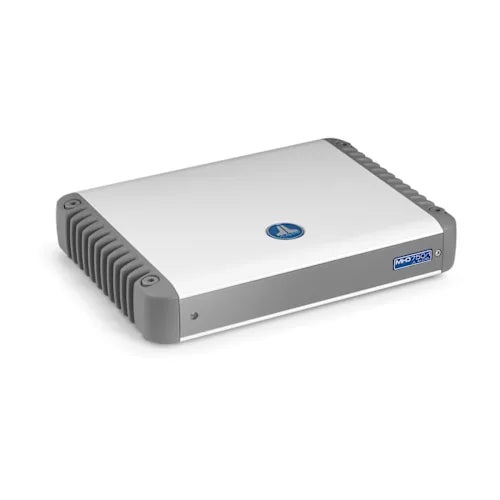

JL Audio® MHD Marine Amplifier – Monoblock Wide-Range Marine Amplifier (750W)
The JL Audio® MHD Marine Amplifier sets a new standard for high-power audio in marine environments. Featuring cutting-edge Single Cycle Control™ and R.I.P.S.™ power supply technologies, it delivers world-class audio fidelity and high-power output in an incredibly compact design. The 750W monoblock amplifier offers exceptional sound performance with minimal space requirements, perfect for high-performance boat audio systems.
UNMATCHED AUDIO PERFORMANCE & INNOVATIVE TECHNOLOGY
This amplifier's Class D design delivers superb sonic performance, and its unique power management system ensures optimal performance at all times, preventing thermal issues while maintaining consistent sound quality. The JL Audio® MHD amplifier is perfect for boat owners who demand high-fidelity sound without compromising on space or reliability.
KEY FEATURES
- Single Cycle Control™: Provides exceptional audio quality with reduced current draw and heat, applying output correction over 400,000 times per second.
- R.I.P.S.™ Technology: Intelligent power supply maintains full power output from 1.5 to 4 ohms per channel, ensuring efficiency and performance.
- Studio-Grade Signal Processing: Features selectable filters (12 dB/octave or 24 dB/octave) with calibrated potentiometer for seamless integration with subwoofers and components.
- Advanced Rollback Protection: Innovative circuit design ensures the amplifier continues to operate, even under extreme conditions, preventing thermal shutdown.
BUILT FOR MARINE ENVIRONMENTS
Designed with durability in mind, the JL Audio® MHD Marine Amplifier features an all-aluminum, powder-coated housing and marine-grade hardware to inhibit corrosion. It meets international standards for salt fog and UV exposure, ensuring long-lasting reliability, no matter the conditions.
- Compact and powerful design with high-efficiency Class D amplification.
- Built to withstand harsh marine environments with corrosion-resistant components.
- Enhanced thermal management prevents overheating and ensures continuous performance.
Inverell Boating Centre Expert Note:
The JL Audio® MHD Marine Amplifier provides exceptional sound quality and high-efficiency power in a compact design. Its high-fidelity Class D performance and advanced power management make it a top choice for boat owners who demand premium audio without the extra bulk. The R.I.P.S.™ technology ensures consistent output, even in extreme conditions.
Specification in detail
Specification in detail
General & Physical
PART NUMBER: 010-03320-00
CHANNELS: Monoblock, 4, 5
DIMENSIONS (H x W x D): Monoblock: 49mm x 273mm x 199mm, 5-Channel: 49mm x 273mm x 199mm
WEIGHT: Monoblock: 2.99kg, 5-Channel: 3.11kg
WARRANTY: 2 years
OPERATING VOLTAGE: Monoblock: 11-14.5 VDC, 5-Channel: 22-29 VDC
Audio Performance
RATED RMS POWER (14.4 V input @ 4 Ohm < 1% THD):
Monoblock: 750W x 1, 4-Channel: 150W x 4/300W x 2 (Bridged), 5-Channel: Main: 100W x 4/Sub: 500W x 1
PEAK POWER: Monoblock: 1100W x 1, 4-Channel: 290W x 4, 5-Channel: Main: 75W x 4/Sub: 500W x 1
SIGNAL-TO-NOISE RATIO: Monoblock: > 110 dB, 4-Channel: > 110 dB, 5-Channel: > 108.5 dB
DAMPING FACTOR @ 4 Ω: Monoblock: > 500/50 Hz, 4-Channel: > 300/50 Hz, 5-Channel: > 400/50 Hz
Protection & Safety
PROTECTION CIRCUITS: Reverse voltage, Input under/over voltage, Over temperature, Output short circuit
FUSE RATING: Monoblock/5-Channel: 60A, 4-Channel: 50A, 5-Channel (24V): 30A
RECOMMENDED FUSE TYPE: AFS, AGU, or MaxiFuse™
Inverell Boating Centre Technical Summary:
The JL Audio® MHD Marine Amplifier combines advanced technologies such as R.I.P.S.™ and Single Cycle Control™ for optimal power output and audio quality. Its compact, durable design makes it perfect for marine environments, offering high power with minimal space requirements. Whether you need a monoblock or multi-channel setup, this amplifier delivers superb sound and reliability.
