LiveScope™ Plus Precision Bundle: GPSMAP 1253xsv & LiveScope Plus with Pole
LiveScope™ Plus Precision Bundle: GPSMAP 1253xsv & LiveScope Plus with Pole

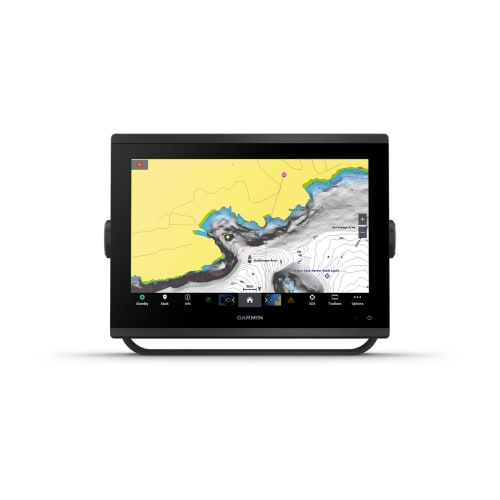

GPSMAP® 1253xsv
LiveScope™ Plus System
Transducer poles Australia CV Live Scope Pole with Ram Mounting
$8,577.00 $7,677.00
LiveScope™ Plus Precision Bundle: GPSMAP 1253xsv & LiveScope Plus with Pole
-
“Hands down the best upgrade I’ve made to my boat. The GPSMAP 8416xsv with the LiveScope setup is next level — I can literally see fish move under structure in real-time. The team at Inverell Boating Centr helped me choose the right transducer pole and even tested the setup before shipping. Top-notch service.”
Jason H. – Gold Coast, QLD -
“I’ve used Garmin gear for years, but this bundle takes things to another level. Everything came pre-configured — plug it in and go. The LiveScope detail is unbelievable. You can actually watch the lure drop and see fish react.”
Ben R. – Perth, WA -
“I fish the reefs a lot, and this setup gives me clarity I’ve never seen before. I can separate coral from fish schools easily. Inverell Boating Centre knew exactly what configuration I needed for northern waters — legends.”
Mick T. – Cairns, QLD
LIVESCOPE PLUS PRECISION BUNDLE: GPSMAP 1253xsv & C.V. Pole
This premium bundle delivers a complete, high-definition live sonar system built around the feature-rich **GPSMAP 1253xsv 12-inch Chartplotter**. It combines the superior clarity and target separation of the **LiveScope™ Plus System (GLS 10 & LVS34)** with the precise, affordable manual control offered by the **C.V. Transducer Pole**. This package is the ultimate solution for serious anglers who demand robust networking, detailed mapping, and powerful real-time fishfinding in a single setup.
IPS DISPLAY MEETS LIVE SONAR CLARITY
The 1253xsv's high-resolution IPS display is perfectly calibrated to showcase the enhanced detail provided by the LiveScope Plus technology.

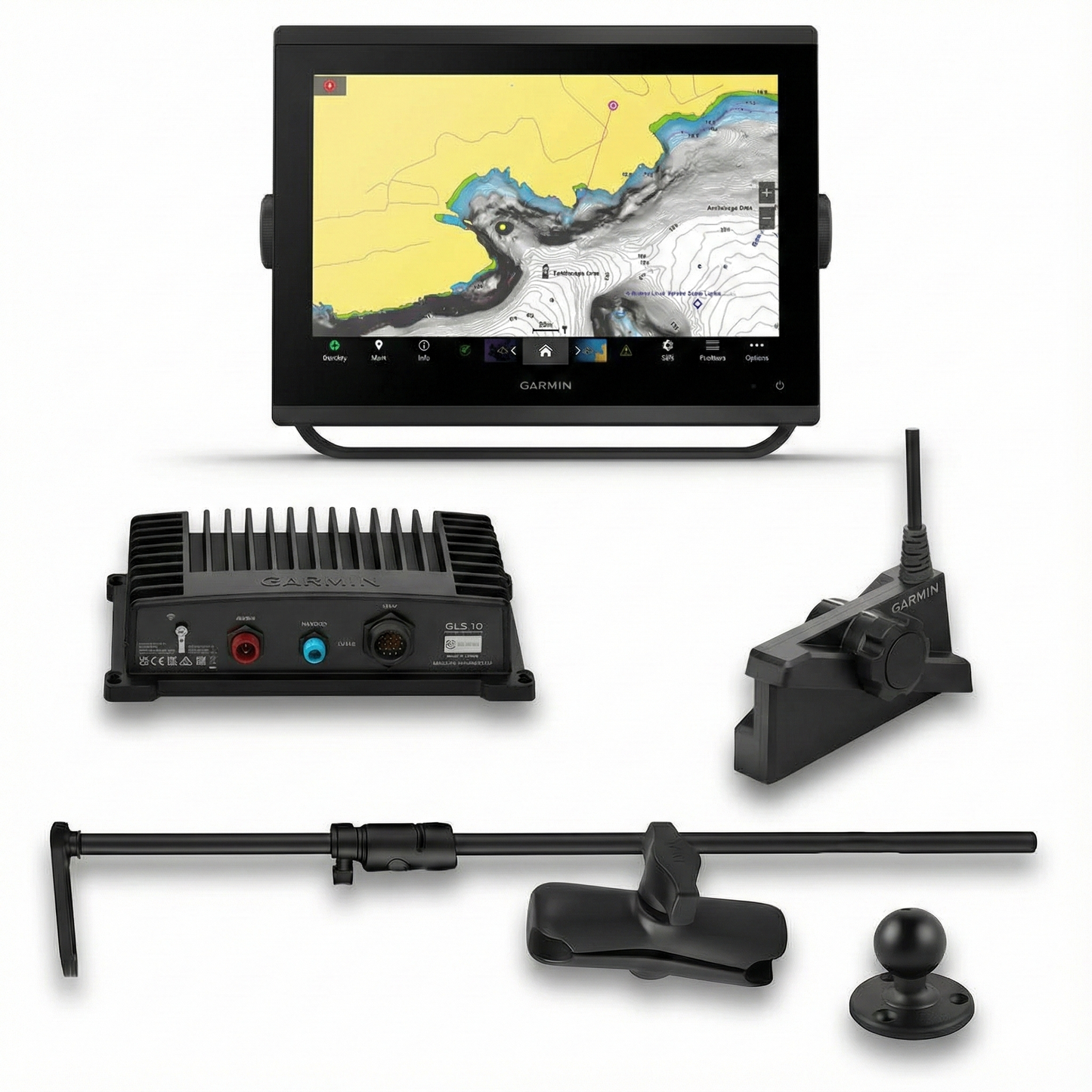

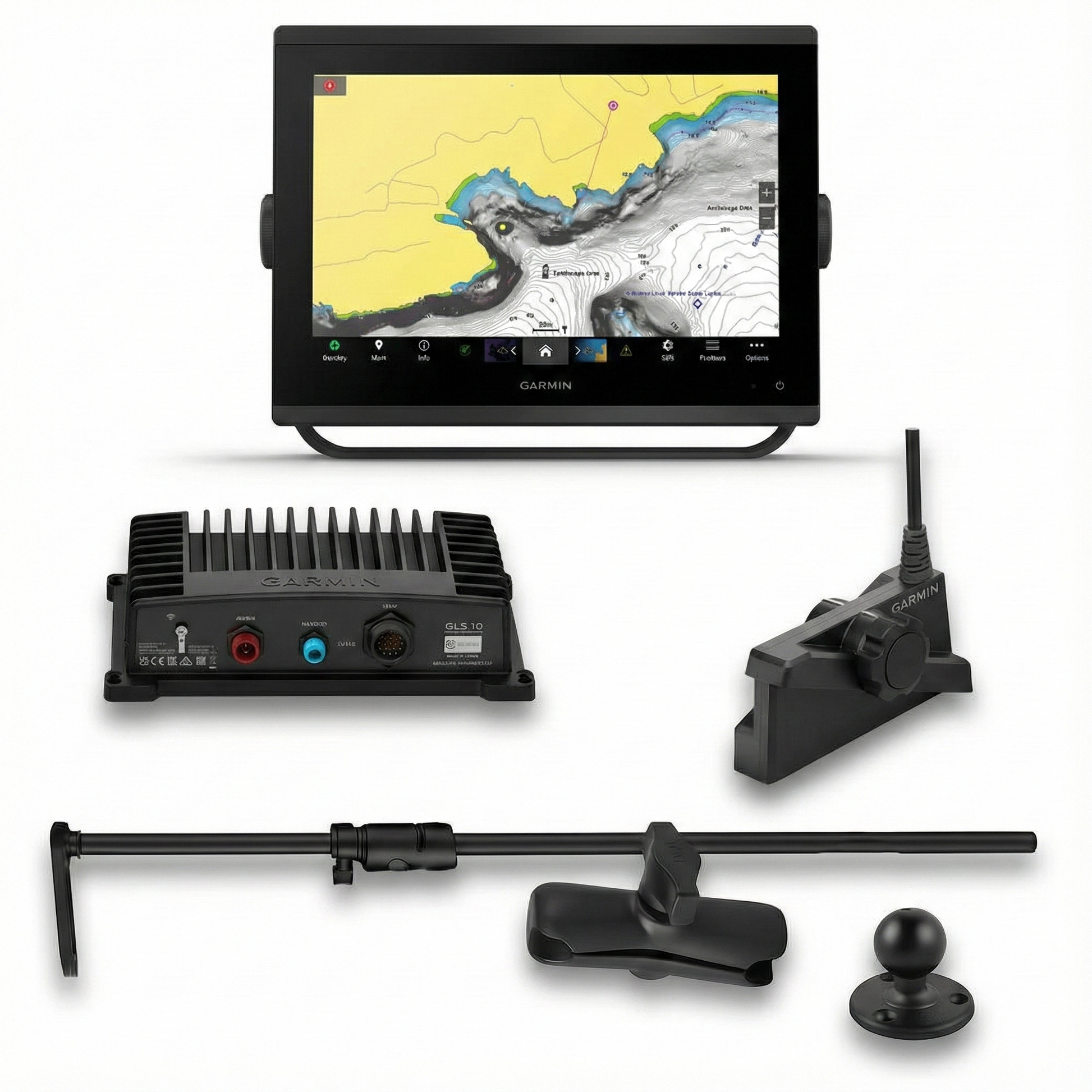

BUNDLE COMPONENTS & BENEFITS
- GPSMAP 1253xsv (12.1"): Features a **higher-resolution IPS display** and **1 kW Traditional CHIRP** built-in sonar, plus Ultra HD SideVü/ClearVü scanning.
- LiveScope™ Plus System: Includes the **GLS 10 Black Box and LVS34 Transducer**, delivering **improved resolution, reduced noise, and superior target separation** in real-time up to 61m (200 ft).
- C.V. Transducer Pole: A 1600mm **powder-coated pole** with acetal handle for **precise, manual control** of the LVS34 transducer, compatible with **RAM D Size** components.
- Network Ready: The 1253xsv features **Dual Garmin Marine Network Ports** and **J1939** connectivity for seamless integration of the GLS 10, radar, and engine data.
OPTIMIZED PERFORMANCE AND VALUE
- **Streamlined Sonar:** The MFD's built-in 1kW traditional sonar eliminates the need for a separate GSD module, simplifying your wiring and saving space.
- **Easy Deployment:** The C.V. Pole comes complete with the necessary mounting hardware (block, collar, handle) for easy LVS34 attachment.
Inverell Boating Centre Expert Bundle Note:
The 1253xsv is an excellent choice for this bundle, offering a brilliant 12-inch IPS screen and all the necessary network ports to run the LiveScope Plus system flawlessly. This setup provides maximum utility and control for precise fish targeting in a single installation.
Specification in detail
Specification in detail
1. GPSMAP 1253xsv (Chartplotter)
DISPLAY: 12.1" Diagonal IPS Touchscreen (WXGA 1280 x 800)
BUILT-IN SONAR: 1 kW Traditional CHIRP, Ultra HD ClearVü/SideVü
NETWORK PORTS: 2 Garmin Marine Network Ports
GPS RECEIVER: 10 Hz (GPS, GLONASS, GALILEO)
POWER INPUT: 10 to 32 Vdc
2. LiveScope™ Plus System (GLS 10 & LVS34)
SONAR TYPE: Real-Time Live Scanning (LVS34 Transducer)
MAXIMUM DEPTH: 61.0 m (200 ft) Down and Forward
FREQUENCY: 530 – 1,100 kHz (Optimized)
GLS 10 POWER: 10-32 Vdc (500 W Transmit Power)
GLS 10 CONNECTION: 1 Garmin Network Port (Small Connector)
3. C.V. Transducer Pole
POLE LENGTH: 1600 mm
POLE FINISH: Powder Coated
HANDLE: Bolt-on Black Acetal
RAM COMPATIBILITY: Designed for RAM D Size Components (Mounting block & collar included)
Inverell Boating Centre Technical Summary: This bundle offers high-end performance for serious anglers. The 1253xsv's superior IPS display efficiently handles the LiveScope Plus data, utilizing the MFD's built-in 1kW traditional sonar and its dual network ports for a clean, fully integrated system installation.
