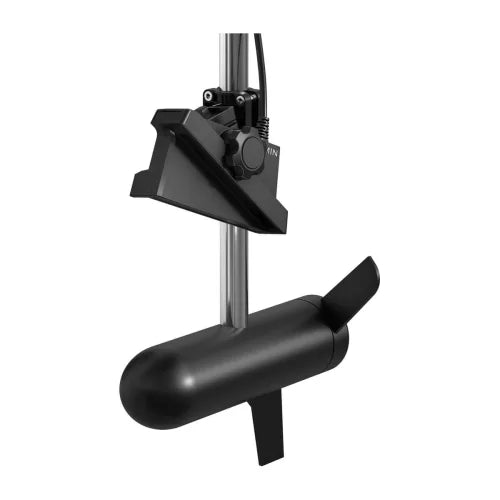

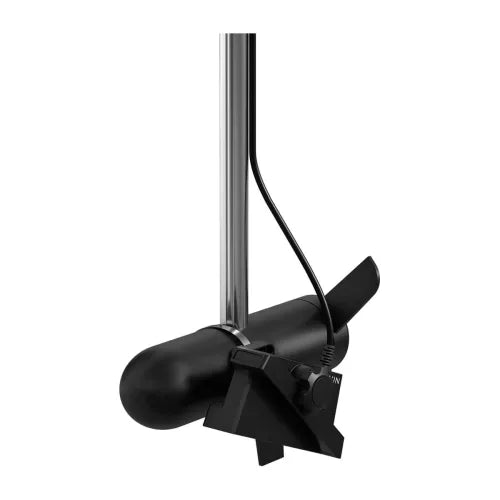

    LIVESCOPE™ XR SYSTEM: Extended Range Live Sonar (GLS 10™ & LVS62)

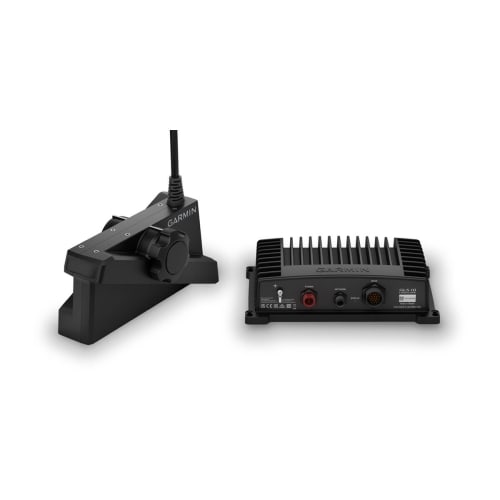

    The LiveScope™ XR System takes live scanning sonar into coastal and open-water depths. This latest evolution of LiveScope technology extends the range up to **152 meters (500 feet) in freshwater** and **106 meters (350 feet) in saltwater**, providing exceptional clarity and target separation at unprecedented distances. The system includes the essential **GLS 10 Black Box** and the extended-range **LVS62 Transducer** [1], delivering real-time, steady images even in rough conditions.


    EXPLORE THE DEEP WITH EXTENDED RANGE

    The LiveScope XR system uses lower frequencies (282-522 kHz) to achieve superior penetration and clarity at extreme distances, allowing you to scout vast areas quickly.

    KEY XR SYSTEM ADVANTAGES

    • Long View Coverage: Scout farther ahead with a freshwater range up to 500' and a saltwater range up to 350'.
    • Range Management: Utilize the **Reverse Range Offset** feature to use more of your chartplotter screen for long-distance targets, and **Compress Range** for clearer views close to the hull.
    • Real-Time Stability: Image stabilization keeps the sonar picture steady on your compatible Chartplotter, providing a clear view even when the boat is moving or facing turbulence. [2]

    LIVESCOPE MODES FOR ANY ENVIRONMENT

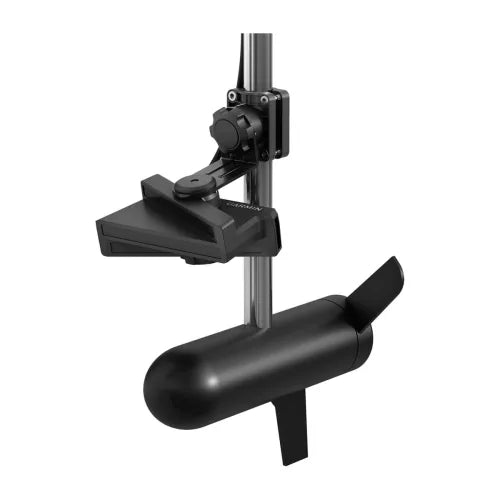

    The included mount allows for quick transition between the three major LiveScope modes for versatility in any water depth:

    • **Forward Mode:** Scout the distance ahead of your boat in real time.
    • **Down Mode:** Explore live views of the deep activity directly beneath your boat.
    • **Perspective Mode:** Provides an overhead view for shallow water scanning (Perspective Mode Mount included). [2]

    Inverell Boating Centre Expert Note:

    The LiveScope XR System is designed for the largest vessels and deepest applications. It requires a compatible Chartplotter with a Garmin Marine Network Port (e.g., ECHOMAP Ultra [1] or GPSMAP series [1]). The system operates on a wide 10-32 Vdc input and includes the necessary GLS 10 Black Box and LVS62 transducer for immediate setup.

    Specification in detail

    General & Physical


    GLS 10 BLACK BOX DIMENSIONS: 9.7″ x 5.9″ x 2.6″ (24.5 x 14.9 x 6.5 cm)

    LVS62 TRANSDUCER DIMENSIONS: 8.20″ x 3.98″ x 2.76″ (20.8 x 10.1 x 7.0 cm)

    WEIGHT (GLS 10): 4.3 lbs (2.0 kg)

    WATER RATING: IPX7 (Submersible)

    TRANSDUCER CABLE LENGTH: 20 ft (6.1 m)

    OPERATING TEMPERATURE (LVS62): 0 °C to 40 °C

    Sonar Capabilities


    SONAR TYPE: LiveScope™ XR (Extended Range Real-Time)

    FREQUENCY: 282 – 522 kHz

    TRANSMIT POWER: 500 W

    MAXIMUM DEPTH (FRESHWATER): 500’ (152.0 m)

    MAXIMUM DEPTH (SALTWATER): 350’ (106.0 m)

    BEAMWIDTH: 20° x 135°

    TARGET SEPARATION @ 100': 22 inches

    Power & Connections


    POWER INPUT: 10-32 Vdc

    TYPICAL POWER USAGE: 21 W

    MAX POWER USAGE: 58 W

    FUSE REQUIREMENT: 7.5 A

    GARMIN MARINE NETWORK PORTS: 1 (Small Connector)

    TRANSDUCER NUMBER OF PINS: 21


    Inverell Boating Centre Technical Summary: The LiveScope XR (Extended Range) system is defined by its ability to reach 500’ in freshwater, a significant upgrade for deepwater coverage. The GLS 10 Black Box operates on a robust 10-32 Vdc input and connects via a single Garmin Marine Network port, requiring a compatible MFD (Chartplotter) for display and control.
