    PANOPTIX™ PS30: LiveVü Down & RealVü 3-D Sonar

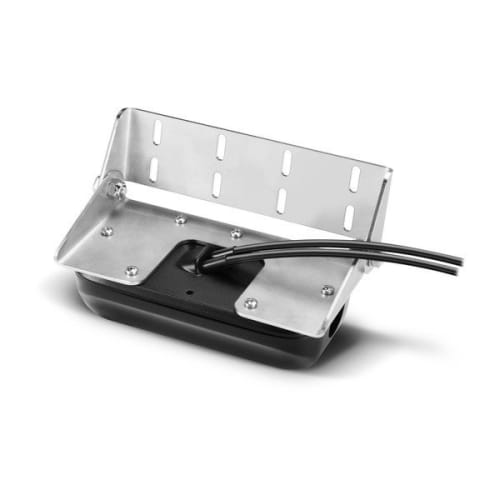

    The Panoptix™ PS30 Down Transducer was Garmin's first all-seeing sonar system designed to show you fish and bait swimming around under your boat **in real time**, even while stationary. It provides **three remarkable views**—LiveVü Down, RealVü 3-D Down, and RealVü 3-D Historical—giving you the unique ability to see your lure, baitfish, and large targets swimming below your boat, bringing fishfinding to life. A transom mounting kit is included.


    ALL-SEEING IS BELIEVING: REAL-TIME VIEWS

    The PS30 utilizes multi-beam phased array technology to provide a comprehensive, real-time picture of the water column directly beneath your boat.

    THREE CORE PANOPTIX VIEWS

    • LiveVü Down: Provides real-time moving sonar images directly below your vessel, allowing you to track your lure and see fish swimming toward or away from the boat.
    • RealVü 3-D Down: Shows history of only one sweep, allowing your boat to be stationary while still seeing the surrounding water column in a detailed 3-D representation.
    • RealVü 3-D Historical: Used while your boat is moving to show the entire water column you have passed over in 3-D, from the bottom to the surface and all fish in between.

    EXCELLENT RANGE & CONNECTIVITY

    The PS30 provides robust coverage up to 300 feet and is built for seamless integration with your compatible Chartplotter (e.g., GPSMAP® or ECHOMAP™ series [1]).

    • **Simple Plug-and-Play:** Easily connects to your system using the simple Garmin Marine Network connector (large RJ45).
    • **Range:** Offers a maximum depth of 300 feet and utilizes a wide 120° x 60° beamwidth for excellent coverage beneath the boat.

    Inverell Boating Centre Expert Note:

    The PS30 is a powerful, earlier-generation Panoptix unit optimized for downward-facing live views and 3D historical scanning. It draws very low power (10W typical) and connects via the large RJ45 Garmin Marine Network port. Note that the LVS series (LiveScope) offers the updated standard for live scanning in Forward mode.

    Specification in detail

    General & Physical


    DIMENSIONS: 3.6" x 1.7" x 6.7" (9.1 x 4.2 x 17 cm)

    WEIGHT: 1.8 lbs (800 g)

    WATER RATING: IPX7 (Submersible)

    INSTALLATION: Transom Mount Kit Included

    TRANSDUCER CABLE LENGTH: 15 ft (Power), 30 ft (Ethernet)

    OPERATING TEMPERATURE: 0° C to 40° C

    Sonar Capabilities


    SONAR TYPE: Multi-beam phased array

    MODES: LiveVü Down, RealVü 3-D Down, RealVü 3-D Historical

    FREQUENCY: 417 kHz

    TRANSMIT POWER: 144 W

    MAXIMUM DEPTH: 300'

    BEAMWIDTH: 120° x 60°

    Power & Connections


    POWER INPUT: 10-35 Vdc

    TYPICAL POWER USAGE: 10 W

    FUSE REQUIREMENT: 4.0 A

    GARMIN MARINE NETWORK PORTS: 1 (Large RJ45 Connector)


    Inverell Boating Centre Technical Summary: The PS30 is an efficient and specialized transducer, drawing only 10W typically. It provides three unique Panoptix views and connects via the large RJ45 Garmin Marine Network port, making it compatible with most network-capable Garmin MFDs.
