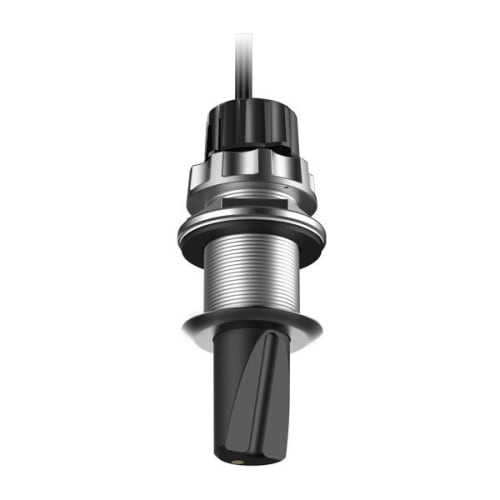

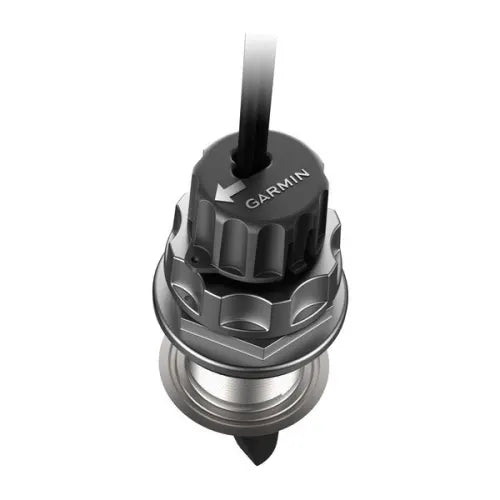

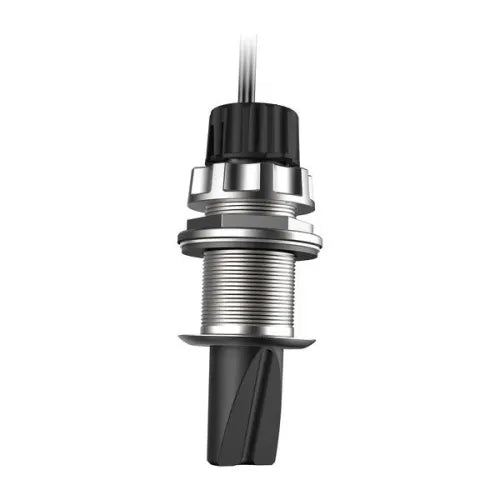

PANOPTIX™ PS51-TH: Forward-Looking Sonar for Grounding Avoidance
The Panoptix™ PS51-TH is a premium thru-hull transducer designed to enhance navigational safety. Featuring **FrontVü forward-looking sonar**, this unit helps you avoid running aground by displaying the bottom contour up to **91 meters (300 feet) ahead** of your boat in real time. It delivers nearly instant feedback, giving you crucial time to react when navigating shallow or unfamiliar Australian waters.
PREMIUM FRONTVÜ™ AND LIVEVÜ™ FORWARD
The PS51-TH utilizes a multibeam phased array to generate both real-time forward views for safety and LiveVü targets for fishing applications.
KEY SONAR & SAFETY FEATURES
- FrontVü Safety Sonar: Displays the bottom ahead of your boat up to 300 feet (at 8 to 10 times the current depth), providing instant navigational feedback. Effectiveness decreases above 8 knots.
- LiveVü Forward: See fish—even divers—swimming in real time under and ahead of your boat with a **100-foot forward range**, whether your boat is moving or stationary.
- Narrow Beam Design: The focused 20-degree narrow beam eliminates confusion by prioritizing the bottom directly in front of the boat, enhancing confidence in navigation.
- Image Stabilization: Includes an Attitude Heading Reference System (AHRS) sensor for motion stabilization, ensuring a clear view even in rough water conditions.
INSTALLATION AND NETWORKING
The PS51-TH is a stainless steel thru-hull mount designed for permanent installation, capable of reliable performance at speed:
- **Thru-Hull Mount:** Features a standard 50.88 mm (2-inch) stainless steel thru-hull mount. Withstands speeds up to **45 knots**, with operational sonar viewing up to 8 knots.
- **Connectivity:** Sonar image data and depth/temperature data can be easily shared with other Chartplotters across the Garmin Marine Network via the plug-and-play connector.
Inverell Boating Centre Marine Expert Note:
The PS51-TH is a specialized navigational safety transducer. Unlike the LiveScope series, its primary benefit is the 300-foot forward bottom view for grounding avoidance. It requires professional thru-hull installation and connects directly to compatible MFDs via the Garmin Marine Network (large RJ45 connector).
Specification in detail
Specification in detail
General & Physical
DIMENSIONS: 1.58" x 7.58" (40 x 192.5 mm)
WEIGHT: 1.8 lbs (800 g)
WATER RATING: IPX7 (Submersible)
INSTALLATION: Thru-Hull (Stainless Steel)
TRANSDUCER CABLE LENGTH: 6 ft (Power), 50 ft ext. (Ethernet)
OPERATING TEMPERATURE: 0° C to 50° C
Sonar Capabilities
SONAR TYPE: Multi-beam phased array
MODES: FrontVü (Grounding Avoidance), LiveVü Forward (Fishing)
FREQUENCY: 417 kHz
TRANSMIT POWER: 96 W
MAXIMUM DEPTH (FRONTVÜ): Up to 300’ (typically 8x current depth)
MAXIMUM RANGE (LIVEVÜ): 100’ (30.5 m)
BEAMWIDTH: 120° x 20°
Power & Connections
POWER INPUT: 10-35 Vdc
TYPICAL POWER USAGE: 9 W
FUSE REQUIREMENT: 4.0 A
GARMIN MARINE NETWORK PORTS: 1 (Large RJ45 Connector)
Inverell Boating Centre Technical Summary: The PS51-TH is a highly specialized navigational safety tool, defined by its 300-foot forward range and focused 20-degree beam. It draws very low power (9W typical) and connects via the large RJ45 Garmin Marine Network port, making it compatible with most network-capable Garmin MFDs.
