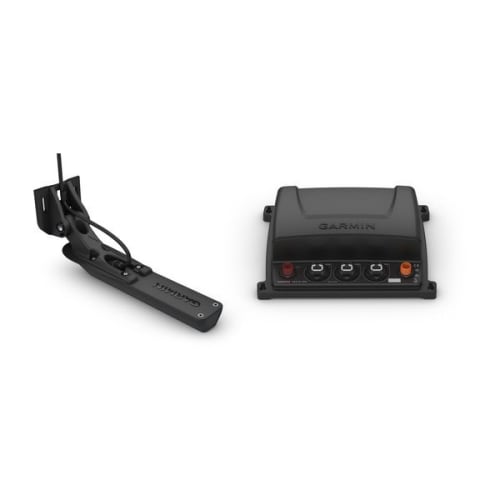

    GCV™ 20 SCANNING SONAR BLACK BOX: Ultra High-Definition ClearVü™ & SideVü™

    The GCV™ 20 Sonar Black Box system redefines scanning sonar clarity by delivering **Ultra High-Definition (UHD)** images of structure and fish. This system includes the networkable GCV™ 20 module and the **GT34UHD-TM Transducer**, allowing you to see amazingly sharp detail below and off to the sides of your boat. It’s an essential component for integrating the highest level of scanning resolution into your existing Garmin Marine Network.


    REDEFINE CLARITY WITH UHD SCANNING

    The GCV 20 utilizes high-frequency sonar to produce clearer images at greater depths than previous generation scanning sonars, revealing fish and structure in stunning detail.

    KEY SONAR & NETWORKING FEATURES

    • UHD ClearVü™ Scanning: Provides brilliant, photo-like image clarity of structure and fish up to **200 feet (61 meters) deep** below your boat.
    • UHD SideVü™ Scanning: Delivers stunningly clear images of structure and fish off to the sides of your boat (250 ft total coverage).
    • Network Sharing: UHD scanning sonar images can be **seamlessly shared across multiple networked Chartplotters** and integrate easily with optional Panoptix™ all-seeing sonar systems.

    FLEXIBLE INSTALLATION

    The GCV 20 is lightweight and rugged (IPX7 rated), designed for straightforward installation on nearly any vessel:

    • **Transducer:** Includes the three-array **GT34UHD Transducer** with mounts for both transom and trolling motor installation.
    • **Connectivity:** Features **three Garmin Marine Network Ports**, providing flexible options for hardwiring to multiple compatible MFDs.

    Inverell Boating Centre Expert Note:

    The GCV 20 Black Box is essential for maximizing scanning sonar detail on compatible Chartplotters. It provides 500W RMS power and operates in the highest frequency ranges (up to 1.2 MHz), ensuring the clearest possible picture of structure. The three network ports offer superior installation flexibility compared to single-port modules.

    Specification in detail

    General & Physical


    DIMENSIONS: 9.9" × 7.6" × 2.6" (251 mm × 192 mm × 66 mm)

    WEIGHT: 1.86 lbs (845 g)

    WATER RATING: IPX7 (Submersible)

    TEMPERATURE RANGE: From -15°C to 70°C

    TRANSDUCER INCLUDED: GT34UHD-TM

    Sonar Capabilities


    SONAR TYPE: Ultra High-Definition ClearVü™ and SideVü™

    TRANSMIT POWER: 500 W rms

    CLEARVÜ FREQUENCY: 0.8 MHz (CHIRP range: 760-880 kHz)

    SIDEVÜ FREQUENCY: 1.2 MHz (CHIRP range: 1,060-1,170 kHz)

    MAXIMUM DEPTH (CLEARVÜ): 200 ft

    MAXIMUM RANGE (SIDEVÜ): 125 ft to each side (250 ft total)

    Power & Connections


    POWER INPUT: 10-32 Vdc

    MAXIMUM POWER USAGE: 120 W

    GARMIN NETWORK PORTS: 3

    COMPASS SAFE DISTANCE: 10.2 in. (26 cm)


    Inverell Boating Centre Technical Summary: The GCV 20 is a dedicated UHD scanning black box optimized for high-frequency clarity up to 1.2 MHz. The three Garmin Network Ports offer superior flexibility for integrating this module into complex network systems with multiple Chartplotters. It provides 500W RMS power and is compatible with 10-32 Vdc power inputs.
