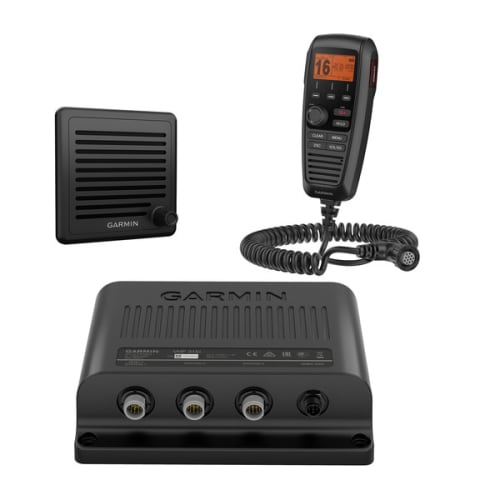

VHF 315i MARINE RADIO: 25W Modular DSC, Hailer & Intercom System
The Garmin VHF 315i is a powerful, **modular communication solution** providing reliable 25-watt VHF Class D **Digital Selective Calling (DSC)** functionality. This system is built to meet the latest industry standards, ensuring the security of reliable communication and full NOAA weather alerts. It includes the **GHS™ 11 handset** and a new **active speaker** for intercom functionality between up to **three stations**, making it ideal for vessels requiring multi-station communication and control.
MODULAR CONTROL & HIGH-POWER HAILER
The VHF 315i integrates seamlessly into the Garmin onboard system via NMEA 2000®, offering superior communication tools, including a two-way hailer system.
KEY COMMUNICATION & INTEGRATION FEATURES
- 25-Watt Power & Class D DSC: Delivers reliable long-range communication and standard distress calling capabilities.
- NMEA 2000® Connectivity: Enables easy plug-and-play integration with compatible Chartplotters [1] for seamless GPS data sharing and software updates.
- Two-Way Hailer/Intercom: Equipped with a **30-watt hailer system** for communication with other boats or deckhands, and uses the active speaker for intercom function between up to 3 stations.
- Modular Design: Includes the GHS™ 11 handset and active speaker, allowing for the radio unit itself to be mounted discreetly below deck.
RELIABILITY AND DURABILITY
The VHF 315i is built for robust performance in the harsh marine environment.
- **Built-in GPS Receiver:** Provides position data necessary for DSC functionality.
- **Rugged Construction:** IPX7 waterproof rated and built to withstand a wide operating temperature range.
Inverell Boating Centre Expert Note:
The VHF 315i is the superior choice for mid-to-large vessels due to its modular design, which facilitates clean helm installation and multi-station communication via the GHS 11 handset and intercom system. The 30W hailer output provides excellent amplification for loud audio signaling.
Specification in detail
Specification in detail
General & Physical (Black Box)
PART NUMBER: 010-02047-01
DIMENSIONS (HxWxD): 8.1” x 7.1” x 2.4” (20.5 x 18.1 x 6.0 cm)
WEIGHT: 3.4 lbs. (1.53 kg)
WATER RATING: IPX7 (Submersible)
COMPASS-SAFE DISTANCE: 2” (5 cm)
Communication & Power
TRANSMIT POWER: 25 W (High) / 0.7–1 W (Low)
DIGITAL SELECTIVE CALLING: Class D
HAILER OUTPUT POWER: 30 W (Two-Way System)
OPERATING VOLTAGE: 9.6 - 16 Vdc
CURRENT DRAW (MAX TRANSMIT): 6 A max
FREQUENCY BANDS: All USA, Canadian, and International Marine Channels; 10 NOAA Weather Channels
Connectivity & Features
NMEA NETWORKING: NMEA 2000 (LEN 1) and NMEA 0183 Compatible
HANDSET COMPATIBILITY: GHS™ 11 Handset (Included); Up to 3 Stations
GPS: Built-in GPS Receiver (Requires external antenna)
EXTERNAL SPEAKER IMPEDANCE: 4 Ω
Inverell Boating Centre Technical Summary: The VHF 315i is Garmin's advanced modular radio, distinguished by its **30W hailer system** and support for up to three stations via the included GHS 11 handset and active speaker. Its modular black box design provides flexibility for helm integration and features low power consumption in standby (350 mA).
